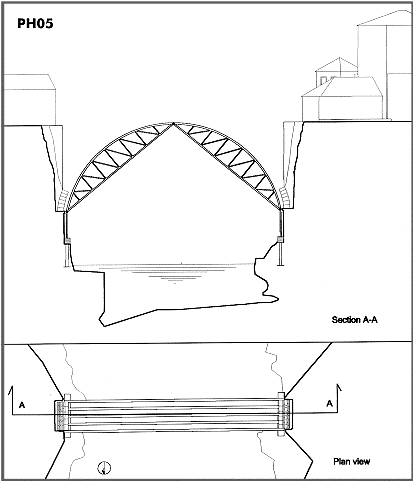

6.4.5 PH 05 - Steel centering erection

• Braced posts mounting for the centering slots (with hinges on top).
• Load bearing steel centering erection on site. (five steel centerings).
• Configuration and shape of the centering, of scaffoldings and of any provisional structure is purely indicative and symbolic: it shouldn’t be taken as a constraint for the performing of the works.
• Dashed lines represent smaller dismantling configurations to be performed if possible.

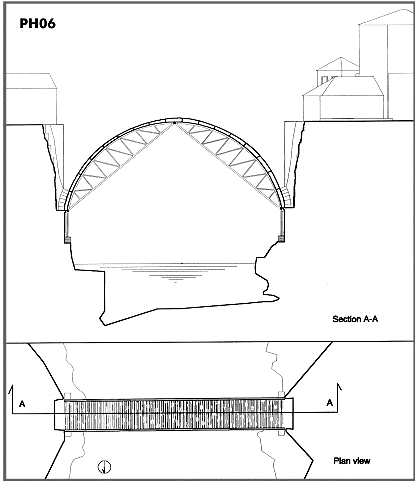

6.4.6 PH 06 - Wooden deck assembling

• Wooden deck placement by sectors on to the steel one.
• Verify of final shape by control points survey and following design specifications.
• Dashed lines represent smaller dismantling configurations to be performed if possible.

CREDITS:

Intellectual property of this report and of the design drawings is owned by General Engineering s.r.l.

© - General Engineering Workgroup -

SOURCE:

Final Design Report
